InGaAs Photodetector with high optical power handing ------KY-PD -18G-SM-HPFeatureslSpectral range 940~ 1650nml3dB bandwidth 18GHzlResponsivity 0.80A / WlHigh optical power handing 50mWlSmall sizelHermetically sealedlHigh reliabilitylSMA  outputApplicationslRF over Fiber LinkslLIDARlHigh-speed pulse measurementDescription KY-PD-18G-SM-HP InGaAs PIN photodetector is used for the high dynamic range analog RF links over fiber. It’s high-performance PIN detector, which has the characteristics of high bandwidth, high responsivity, flat gain, small size, etc. The power supply is DC 5V, and the connector is FC / APC. SMA output port, mainly used in high-speed optical fiber transmission system, ROF, optical fiber sensing system.ParametersParametersSymbolMin.Typ.Max.UnitSpectral responsel9401650nmDark current(VR=5V)Id320nAResponsivity(VR=5V)R0.800.85A/WBandwidthBW18GHzOptical return lossORL30dBSaturated optical powerPs50mWFiberSmf-28eFiber connectorFC/PC、FC/APC or user specifiedElectrical return lossS11-12-10dBInput impedanceZRF50W...
Balanced Photoreceiver ------ The KY-BPRM seriesKey FeatureslSpectral Range 400-1700nmlVarious 3dB band-width optionslWith output monitoringlRise time Min.lCMRR30dBlLow noiselSingle power supply DC 12VlDimensions 47x42x20mmlCan be customizedApplicationslNanosecond optical pulse detectionlLaser radarlBrillouin Optical Fiber Sensing Systemlf-OTDR lOCT(Optical coherent tomography) Options lPhotosensitive surfacelBand-widthlGainlOutput CouplingDescription The KY-BPRM series balanced photoreceiver integrates two matched high linearity analog PIN detector and low noise broadband transimpedance amplifier, with high gain, high sensitivity, DC coupling output and high common-mode rejection ratio(CMRR). This can effectively reduce the common mode noise of the input light and improve the signal to noise ratio of the system. The module is powered by positive 12V, and the input optical interface is optional for optic fiber or space incidence. The electric signal is SMA output, mainly used in nanosecond optical pulse...

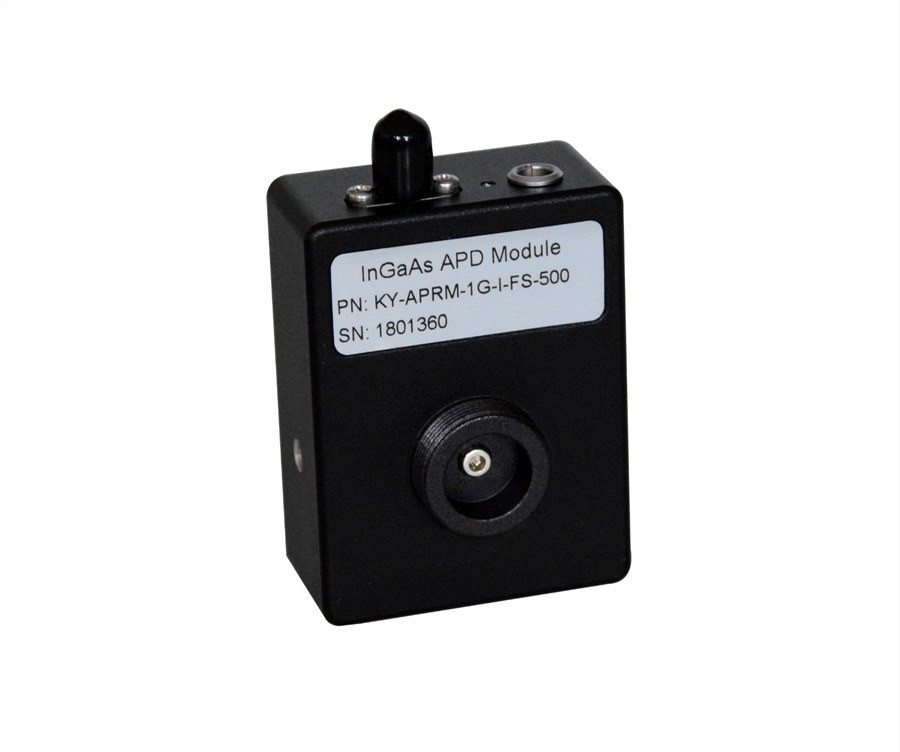

Avalanche Photoreceiver ------ The KY-APRM seriesKey FeatureslMultiple series of productsSi APDInGaAs APDDual-channel APD Module for DTSTTL-output APD Module for FSOl3dB Band-width Max. 10GHzlRise time Min.lIntegrated amplifier circuitlIntegrated boost and temperature compensation circuitlLow noise, high gainlφ20mm Adapter for optical antennalM4 adapter for the M4 post mountslSingle power supply DC 12VlDimensions 47x42x26mmlSMA outputlCan be customizedApplicationslPulse form measurementslLaser radarlLaser CommunicationlOptical Fiber Sensing SystemlSpectroscopylOTDROptionslPhotosensitive Surface lBand-widthlGainlOutput CouplinglVariable Gain by softwarelDigital TTL level outputDescription The KY-APRM series avalanche photoreceiver uses imported avalanche photodiode with high gain, fast response and low dark current, integrates low-noise broadband transimpedance amplifier, boost and temperature compensation circuit, with high gain and high sensitivity. The module is powered by positive 12V, and the input o...
Low Noise PIN Photoreceiver With Amplifier ----- The KY-PRM seriesKey FeatureslSpectral Range 200-3600nml3dB Band-width Max. 40GHzlRise time Min.lIntegrated amplifier circuitlLow noise, high gainlφ20mm Adapter for optical antennalM4 adapter for the M4 post mountslSingle power supply DC 12VlDimensions47x42x20mm（Fiber connector）47x42x26mm（Free space connector）lSMA outputlCan be customizedApplicationslPicosecond optical pulse detectionlLaser radarlOptical Fiber Sensing SystemlOptical inspectionOptionslBand-widthlGainlCouplinglOptical interfaceDescription The KY-PRM series low noise PIN photoreceiver integrates high linearity analog PIN detector and low noise broadband transimpedance amplifier with high gain, high sensitivity, AC coupling output and flat gain. The module is powered by positive 12V, and the input optical interface is optional for optic fiber or space incidence. The fiber interface is universal for single-mode and multi-mode optical fiber. Various photosensitive surfaces are optional when space is incident, and ...
